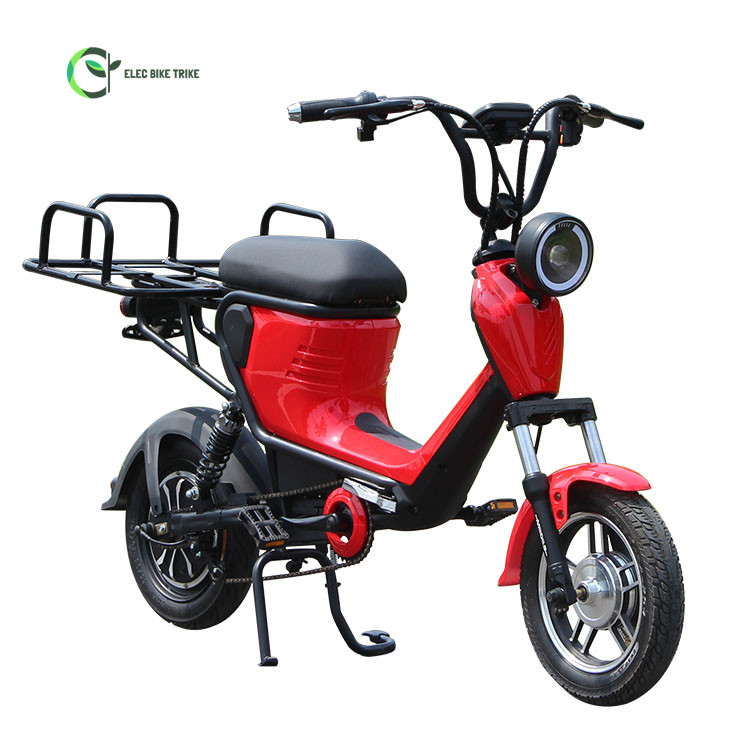

Delivery using, with pedal , lithium battery , with rear big carrier
  • MODEL NO./NAME: CHM-PZ01  (JK)
  • DIMENSION (MM): 1600×250×720MM
  • REAR STORAGE RACK SIZE (MM) 50X45CM
  • WEIGHT (WITHOUT BATTERY): 43 KGS
  • CLIMBING ABILITY: 10° (1 PERSON,70KG)
  • MAX. SPEED (KM/H): 33~35KM/H  (3-SPEED)
  • DISTANCE PER CHARGE(KM): 75~200KM (WITH PAS )
  • MOTOR: 400W DC BRUSHLESS MOTOR
  • CONTROLLER: SINE WAVE CONTROLLER
  • BATTERY: 48V12AH/20AH~40AH LITHIUM
  • CHARGING TIME: 6~8 H FOR LEAD ACID BATTERY; 3~5 H FOR LI-ION BATTERY
  • TIRE(F/R): 14*2.5 TUBELESS
  • BRAKES(FRONT/REAR): DRUM / DRUM
  • CONTAINER LOADING: 40HQ=100 PCS
